Steering Files

This chapter describes how to create and manage steering files in MAFw. Before reading this chapter be sure to be familiar with the basic concept of MAFw, like processors, parameters and filters, otherwise you won’t be able to understand what we are talking about. Steering files are TOML documents that define the analysis pipeline, including global variables, database connection settings, user interface preferences, and the list of processors to be executed.

Steering GUI User Guide

Writing steering files by hand can be a daunting task. While TOML is a human-readable format, it is easy to make a typo in a processor name, forget a mandatory parameter, or create a circular dependency between groups. To make your life easier, MAFw provides a graphical tool to generate and edit these files in a user-friendly way.

Why use the Steering GUI?

Error prevention: No more worrying about TOML syntax or misspelled keys. The GUI ensures that the file is always well-formatted.
Automatic validation: As you build your pipeline, the GUI checks for common mistakes like missing references or cyclic group definitions.
Schema alignment: The GUI knows what parameters each processor expects. It automatically shows the correct editors for each field, so you don’t have to look up the documentation every time.

Installation

The Steering GUI is not installed by default because it depends on PySide6, which is quite a heavy library and you do not need the steering GUI on a headless computational container. If you want to use it, you need to install it explicitly.

You can install it using pip:

pip install mafw[steering-gui]

Or, if you are developing MAFw and using hatch:

hatch run optional:steering-gui

Note

You might notice that the test coverage for the GUI is not as high as for the rest of the framework. This is intentional: we focus our testing efforts on the scientific “business logic” to ensure your results are always correct. Testing graphical interfaces is notoriously difficult and would significantly slow down our development and continuous integration.

Once installed, you can run the GUI either from the command line in your virtual environment with steering-gui or you can make a link to the binary file on your desktop and launch it with a double click. To open a steering file immediately, pass its path as the single command-line argument:

steering-gui filename.toml

General Operation

When you launch the Steering GUI, you are greeted with a traditional desktop layout.

File Menu: Use this to create a New steering file, Open an existing one, or Save your progress. Open Recent lists the latest steering files you opened or saved, with the full path available as a hover hint. The Open Recent menu remembers up to ten existing files between launches. Select a file to reopen it; if you have unsaved changes, the GUI asks whether to save, discard, or cancel before replacing the current file.
Main Window: The window is split into two parts:
- Pipeline Tree (Left): Shows the structure of your steering file, including Globals, Database, UI, and all your Processors and Groups.
- Editor Area (Right): Changes depending on what you have selected in the tree.
Context Menus: Almost everything in the GUI has a right-click menu! If you are stuck or want to see what else you can do (like adding a new processor or removing a filter), just try right-clicking on an item.

Relative paths and Save As

The GUI keeps the path text that you entered in the steering file. If you use Save As to save the file in another folder, the GUI uses that new file location as the base for relative paths after saving succeeds. It does not rewrite those values or add filesystem-existence checks as part of this path-context update. Existing semantic validation behavior is preserved. For example, ../data can point to a different folder after the steering file moves. If you want to keep using the same data, update the path from the new steering-file folder. See Filesystem paths in steering files for examples.

Importing and exporting external filters

Added in version 2.4.

The use of filter files is described in details here. The MAFw is not offering a dedicated GUI tool for filter files creation and manipulation, but inside steering-gui, the user can extract and overlay filter files in a similar manner as from the CLI tool.

Use Filters → Export filter → Extract… to save the current document’s filters as reusable TOML filter file. Export includes unsaved filter edits and does not mark the document modified. Use Filters → Import filter… to overlay a filter file onto the current steering document. The import uses the same replacement and precedence rules as mafw run --filter and marks the document modified. Save normally to persist the imported selections.

To create or edit external filter files, open a complete steering configuration, edit filters in the existing filter manager, then export them. No separate filter editor is required.

Use Filters → Export filter → Strip… to export the filters and remove them from the current steering document. This marks the document modified; save it normally to persist the stripped configuration. Global new_only and processor __new_only__ settings are retained.

Use Filters → Drop filters to remove filter definitions from the current document without exporting them. Drop marks the document modified and can be undone; save normally to persist the change. Hover over each Filters menu operation to see its status bar explanation.

The Editors

Metadata Editor

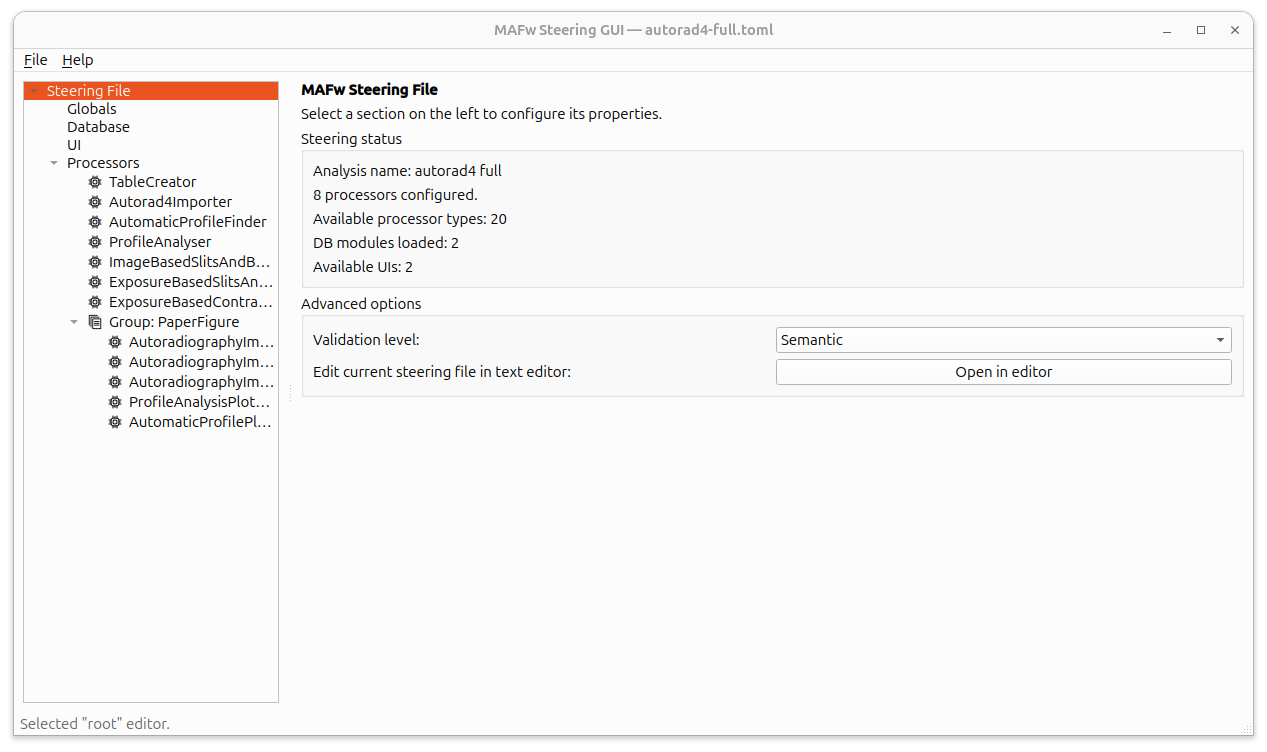

When you select the top-level item in the tree, you’ll see a summary of your analysis. This includes the analysis name and a quick count of how many processors and groups you have configured.

If you ever feel the need to see the raw TOML or make a quick manual change, there is a Open in editor button (CTRL + G) that will open the current state of the file in a custom text editor with TOML syntax highlighting and live validation. It won’t be as intuitive as with the GUI, but at least you won’t make stupid typo mistakes.

Globals Editor

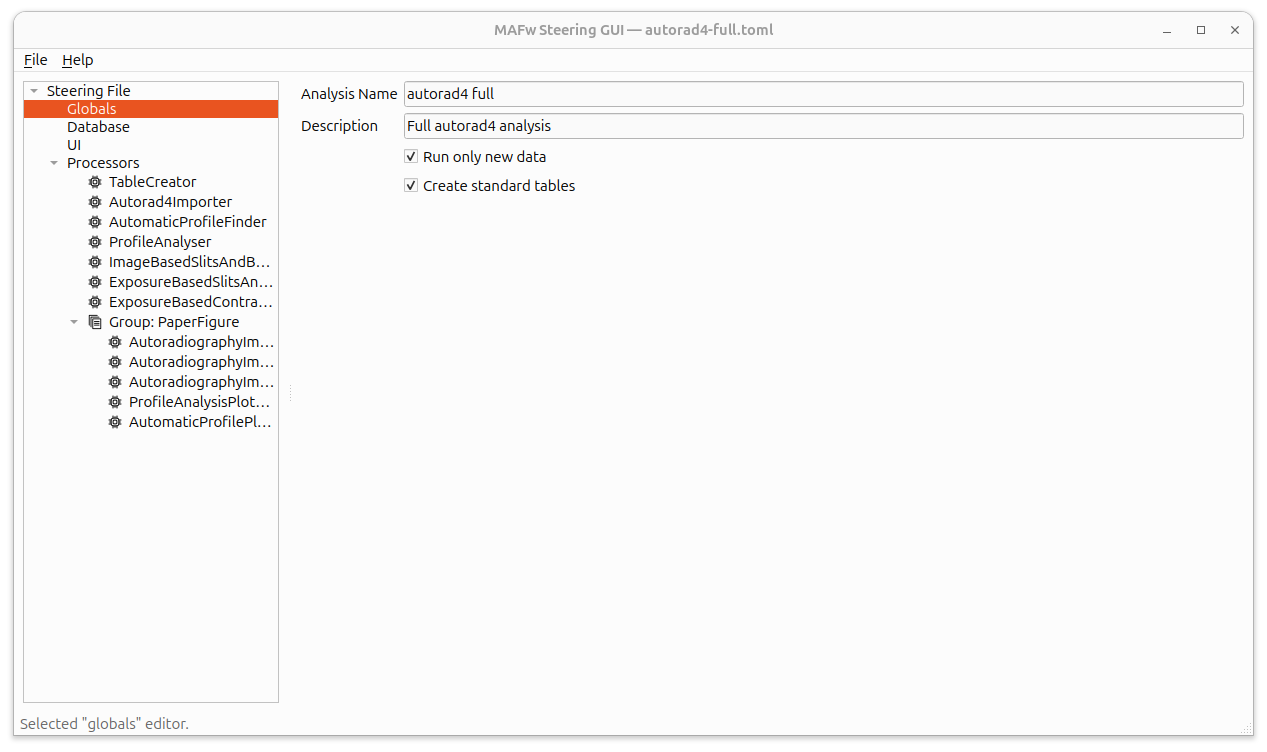

Here you can set the analysis name and description along with globally valid switches for the processing of new_only data and the creation of standard database tables.

The Environment files table lists the dotenv files configured in the top-level env_files steering setting. Use the path field and its browse button to choose each file, + to add a row, and − to remove selected rows. Drag rows to change the order in which files are loaded. Relative paths use the folder containing the steering file as their base. The Valid and Loaded columns show whether each file can be read as dotenv input and whether it has been applied to the current environment. Use Apply / Reload environment after changing a dotenv file to refresh the values used by database connection tests. Switching to another steering file replaces the active environment values. The GUI displays paths and validation results, never dotenv values or passwords. See Loading dotenv files for path and precedence rules.

Database Editor

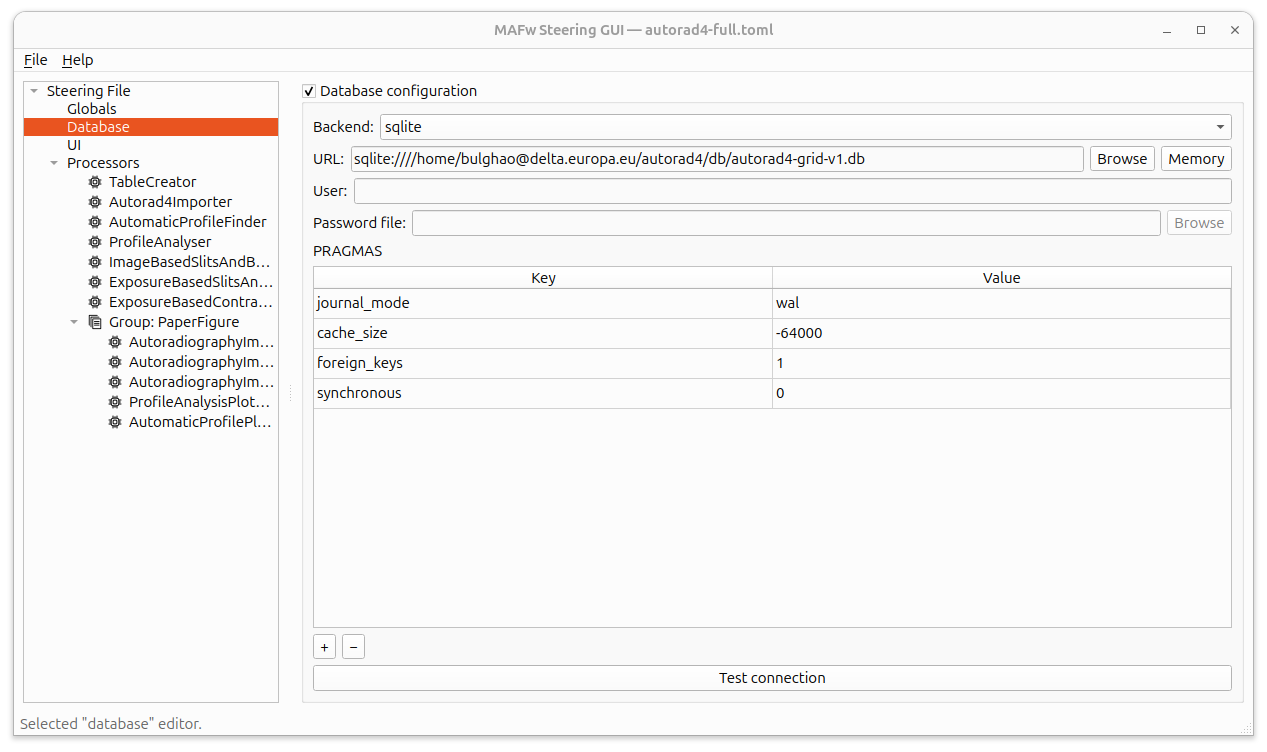

Configure how MAFw connects to your database. You can choose the database backend (SQLite, PostgreSQL, MySQL) and provide the necessary credentials and connection details. Have a look at here for more details. Clicking the Test connection button you will have the chance to verify if your setup is really able to connect to the database, anticipating possible connection issues.

The database editor is divided into three main widgets resembling the three structural layers in the database section in the steering file: the transport end point (URL), the authentication layer and the parameter section. The URL field in the GUI is read-only, the user should modify either the path (for SQLite) or the host, port and database for the server based databases.

For the authentication, you can choose among the three available methods, inline meaning that username and password will be written as plain text in the steering file, environmental variables, meaning that instead of encoding the username and password, the steering file will contain the name of environmental variables pointing to the actual username and password. The last, and most secure, option is to provide the path to a password file.

In the parameter section, the user can append other parameters / values to be passed to the peewee connect function. This is something for advanced users, so be aware of what your are doing. In case of doubts, just click on the test connection to see if it works or not.

The migration directory field, with its browse helper button, is used to persist in the steering file where the scientist user wants to store database schema migration script. You can provide a relative path with respect to the steering file, or, if you click on the browse button, the dialog will return an absolute path to be used. If you want a refresh on what the schema migration is have a look at this advanced feature. As a general rule this directory should be under version control (git) and stay with your analysis code and not with the analysis output results.

If you do not want a database for your analysis, uncheck the Database configuration at the very top; no DBConfiguration table will be written to the steering file.

Storage Configuration Editor

To use logical storage, keep the Database configuration enabled and configure the database connection first. MAFw uses that database to register each storage volume’s identity. Storage cannot be used without an active database configuration.

Select Storage in the pipeline tree and enable the storage configuration with the switch at the top of the editor. The table lists configured volumes and their root paths. Turning that switch off removes the entire StorageConfiguration table from the steering file; it does not just hide the volume list. The root can contain an environment variable so the same steering file can use a different mount point on each computer.

The Storage editor has one row per volume. Select a row to edit or remove it. Choose Add to create a volume or Edit to change the selected one; both actions open the same dialog, with existing settings filled in when editing.

Storage editor with the storage switch and a table of volume names and root paths — Fig. 13 The Storage editor lists configured volumes and lets you add, edit, or remove them.

In the volume dialog, enter a unique volume name and the folder that contains its files. The root can include an environment variable such as ${DATA_ROOT}/output so each computer can use its own mount point. Choose the filesystem backend and an access policy: read-only for input data, protected for data that may be changed but must not be automatically deleted, or full when MAFw-managed deletion is acceptable. Use the parameters table only when the selected backend requires extra settings. The dialog checks the configuration before accepting it and shows validation feedback in its notification area. Selecting OK stores the volume in the steering file; it does not create the folder or move any files.

Add storage volume dialog with fields for name, root path, backend type, access, and backend parameters — Fig. 14 Add a volume or edit its existing settings in this dialog.

UI Editor

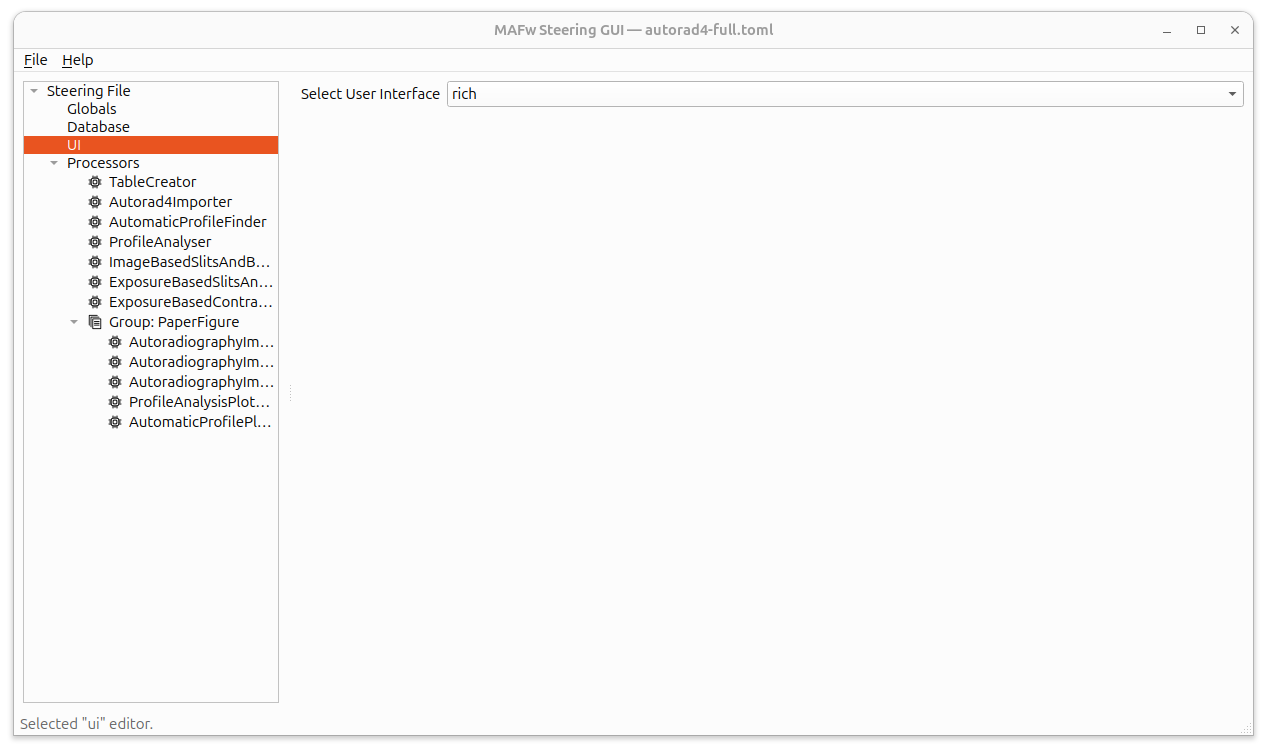

Decide how MAFw should talk to you during execution. You can choose between a simple console output, a rich text interface, or, if you have installed them, other available plugins.

Pipeline Editor

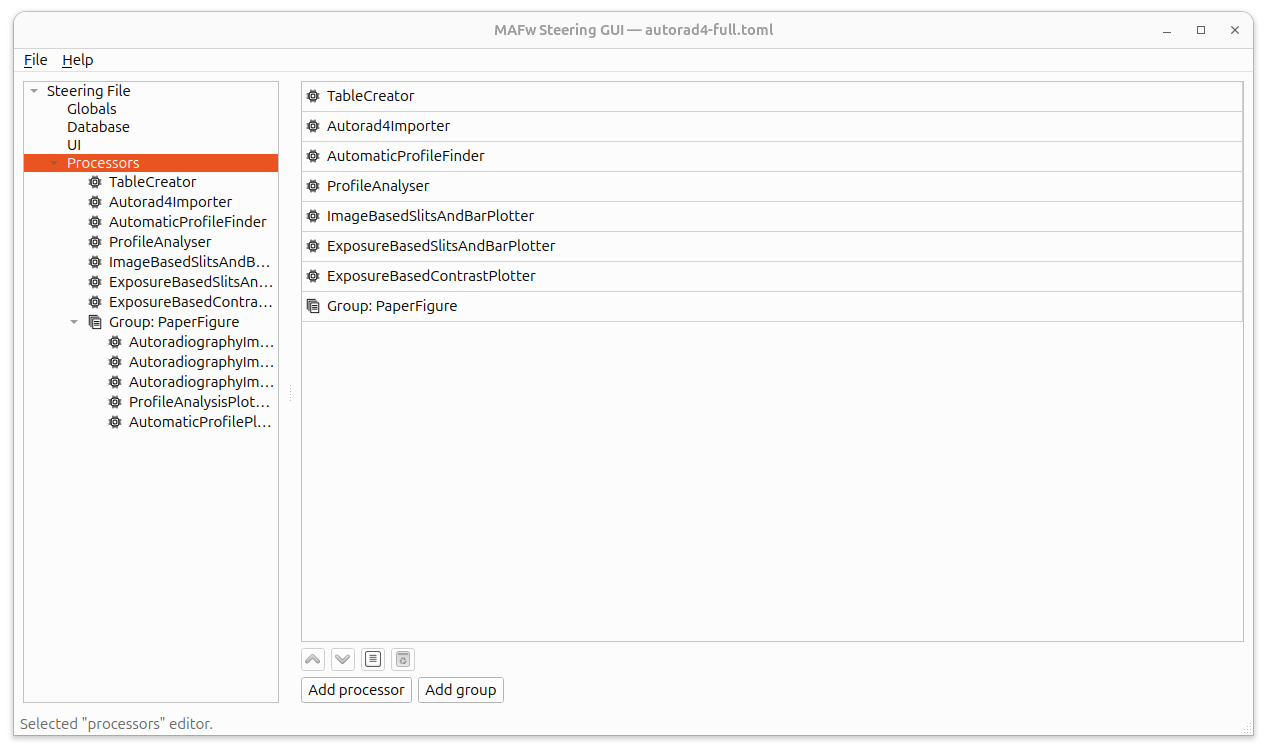

This is where you manage the processors in your analysis. To display this editor you can click on the Processor section of the steering file tree. You can add new processors from the list of available plugins, remove them, or change the order in which they appear in the file. The UI is meant to be self-explanatory and intuitive, so just drag and drop items to reorder them.

Processor Parameter Editor

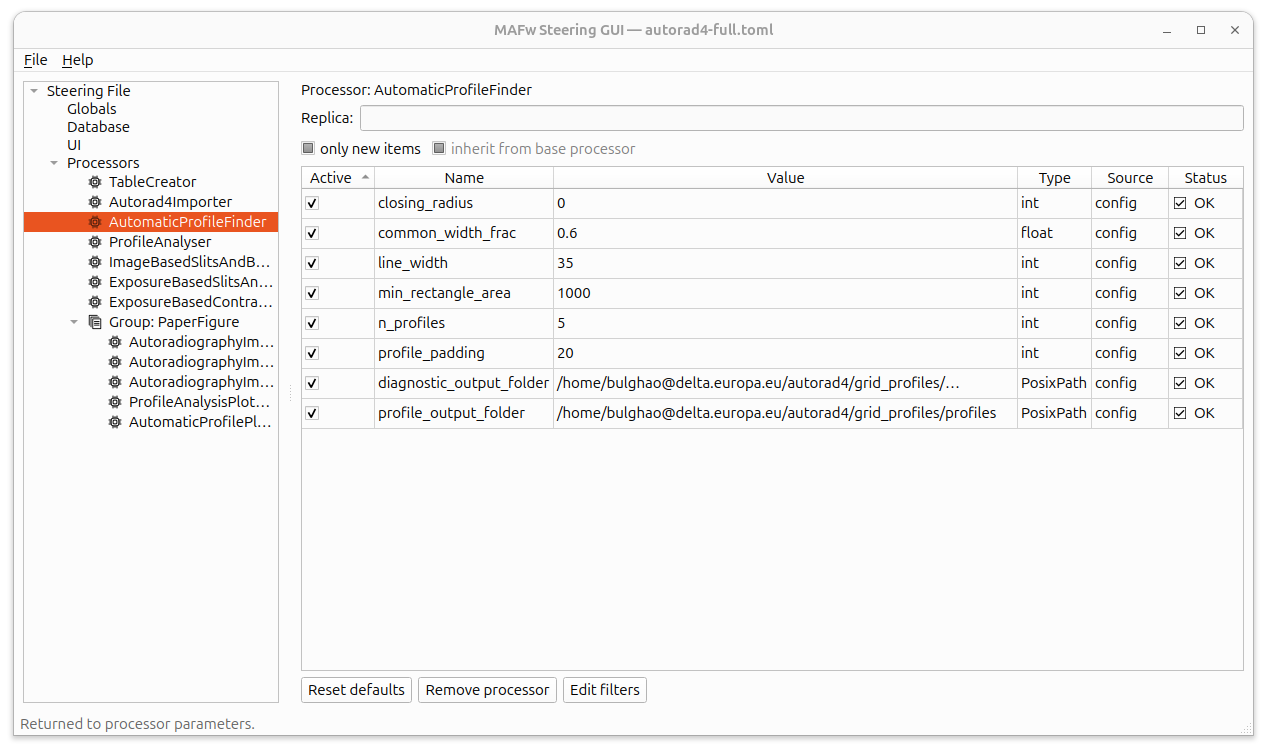

When you select a specific processor, you can assign it a specific replica name and you can edit all its parameters. The GUI dynamically builds an editor based on the processor’s requirements, so you’ll see checkboxes for booleans, number inputs for integers, and so on. If the parameter name is not clear enough, you can move the mouse over the parameter line and a tool-tip will present you the help text that you have entered in the processor.ActiveParameter definition.

The GUI can choose more useful editors when processor parameters have precise type annotations. Annotate path values with PathRole to distinguish folders, existing input files, and output files; annotate collections as list[<type>] so the GUI can edit each item with an editor suited to that type. This helps you build a valid steering file without manually converting values or guessing what each parameter expects.

For example, a processor can declare a folder, a list of input files, and a list of integer options like this:

from pathlib import Path
from typing import Annotated

from mafw.processor import ActiveParameter, PathRole, Processor


class ImageLoader(Processor):
    input_folder: ActiveParameter[Annotated[Path, PathRole.DIRECTORY]] = ActiveParameter(
        'input_folder', default=Path.cwd(), help_doc='Folder containing images to load.'
    )
    calibration_files: ActiveParameter[list[Annotated[Path, PathRole.INPUT_FILE]]] = ActiveParameter(
        'calibration_files', default=[], help_doc='Existing calibration files to apply.'
    )
    channels: ActiveParameter[list[int]] = ActiveParameter(
        'channels', default=[0, 1], help_doc='Image channels to process.'
    )

These annotations preserve the values your processor receives while giving the Steering GUI enough information to guide their entry.

The path role selects a suitable browse dialog; it does not resolve the configured path or check that the target exists. MAFw resolves known filesystem paths when the processor uses the path-resolution helper. The configured value is kept in the steering file. See Filesystem paths in steering files for how the effective location is chosen.

Within the processor settings, you can also manage filters:

Filter Manager: A central place to see and organize all filters applied to the processor.

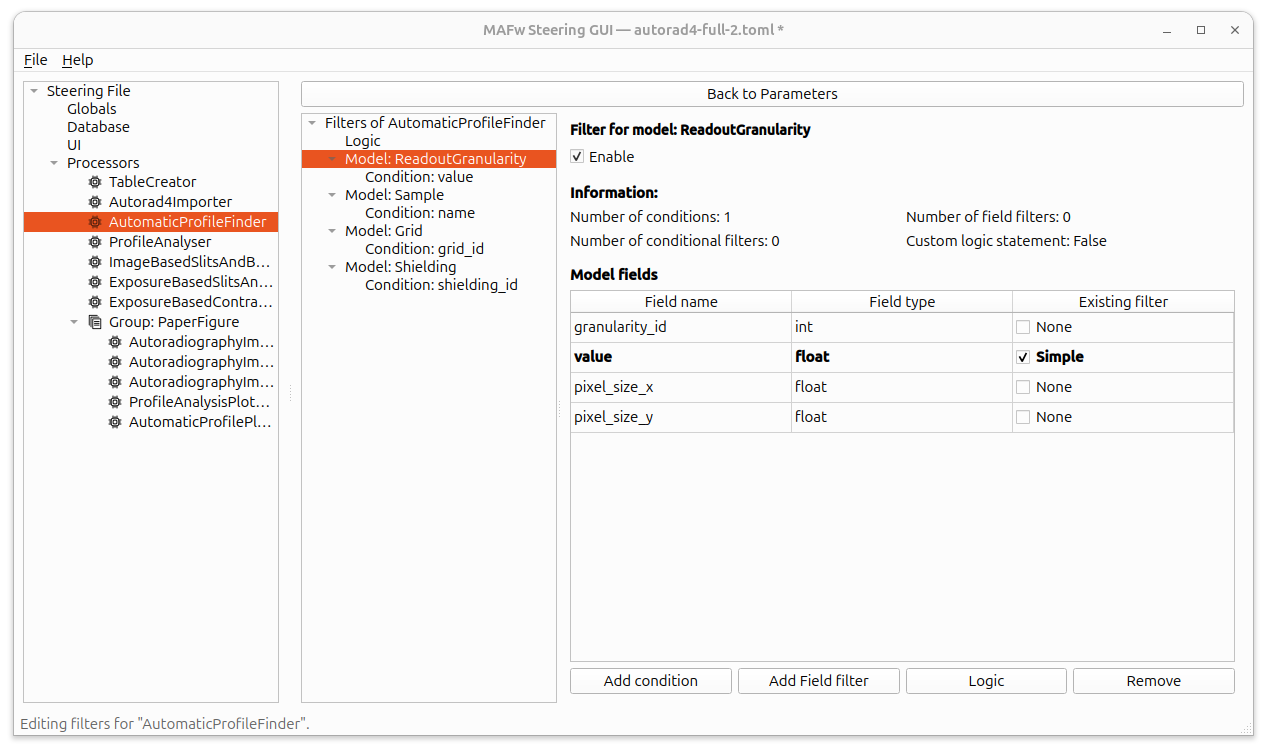

Model filter editor: Select which data models this processor should operate on.

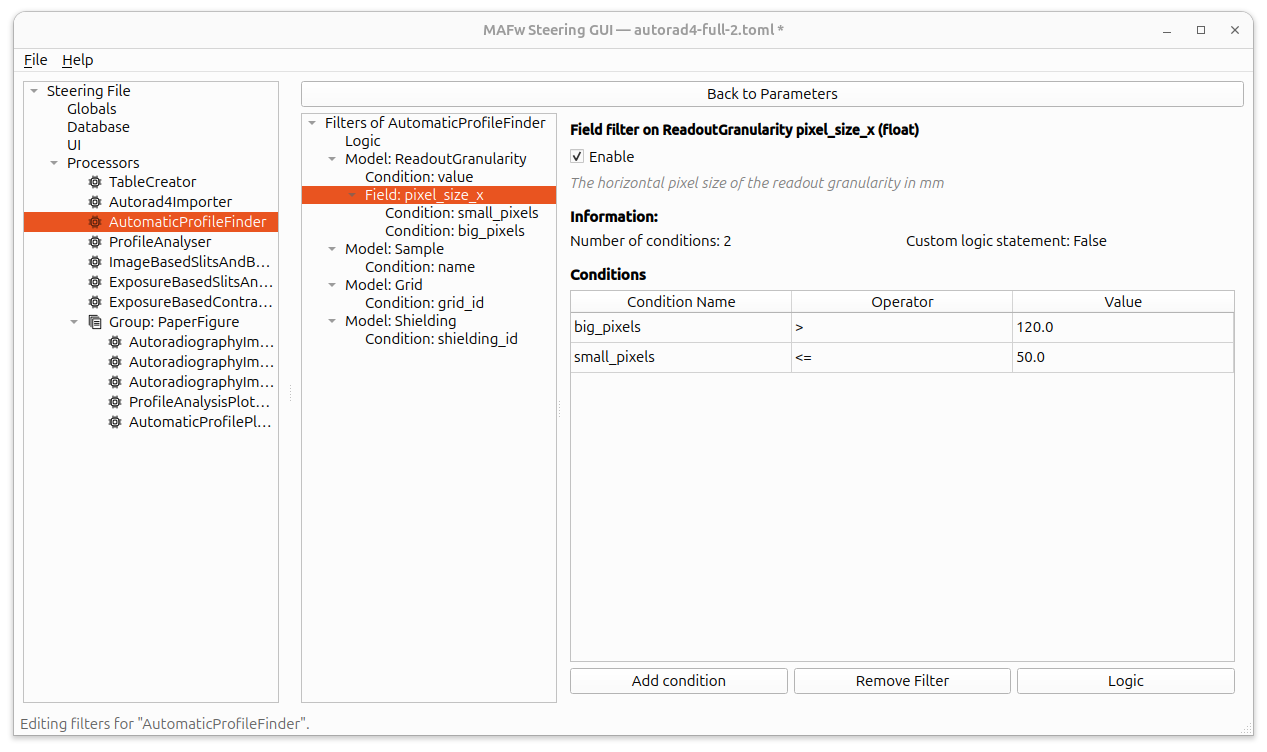

Field filter editor: Filter data based on specific field values.
Conditional filter editor: Create more complex rules, like checking if a value is within a range or exists in a predefined list.

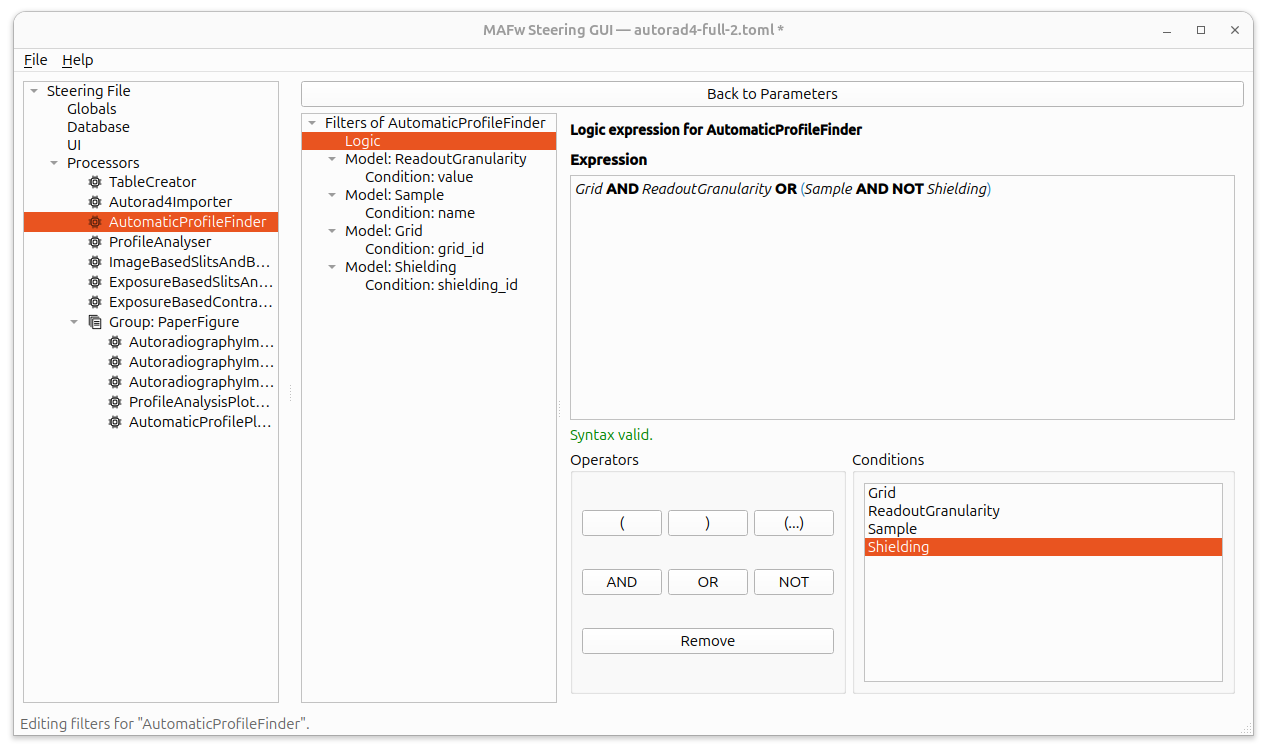

Logic editor: The ultimate tool for complex selections. It allows you to combine multiple filters using AND, OR, and NOT logic.

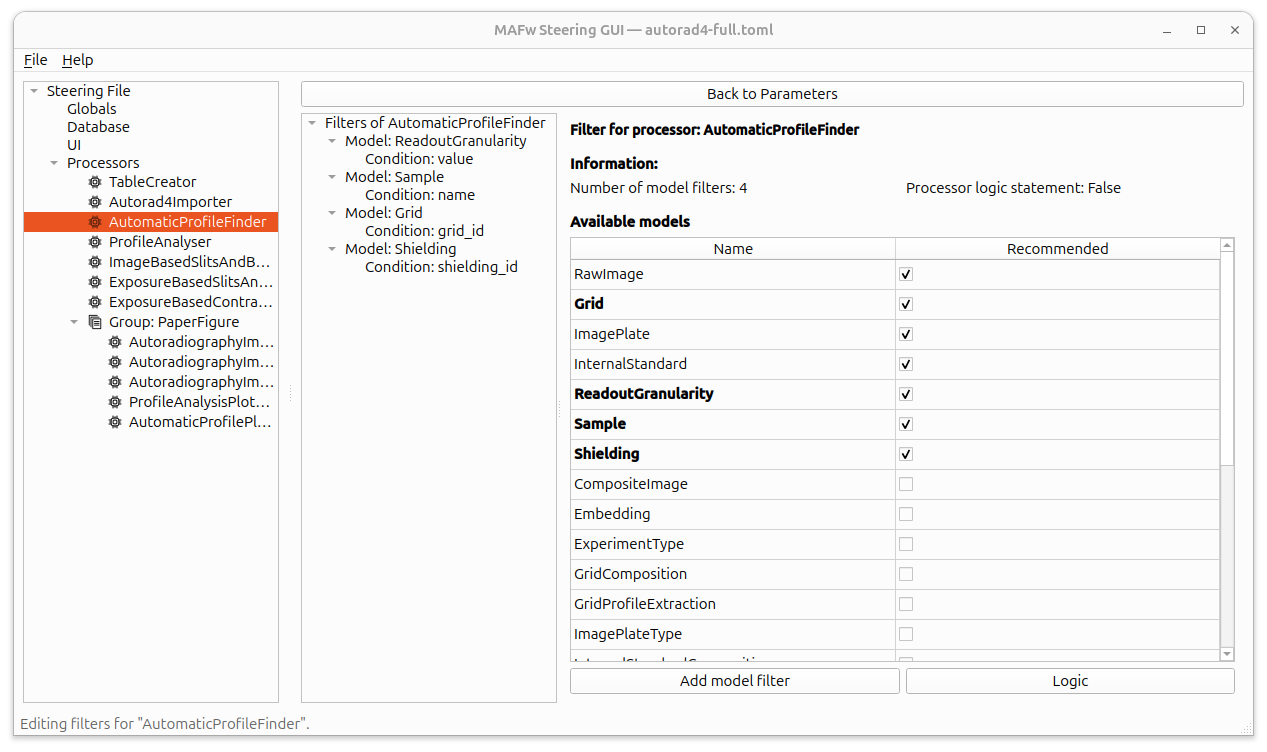

To access the filter manager, just click the Edit filters button for the specific processor and there you can operate directly on the hierarchical structure of MAFw filters. Here you will experience the big advantage of the GUI approach, you do not have to remember the database model names or even worse the field names, the GUI will present you with the available models and available fields. Just follow your instinct and do not forget to explore the context menu. The logic editor is another example of how the GUI can simplify your life. You can either write directly the logical statement and get suggestions for the available names and real time validation, or you can use the buttons and the table to build a sentence just by clicking.

Group Editor

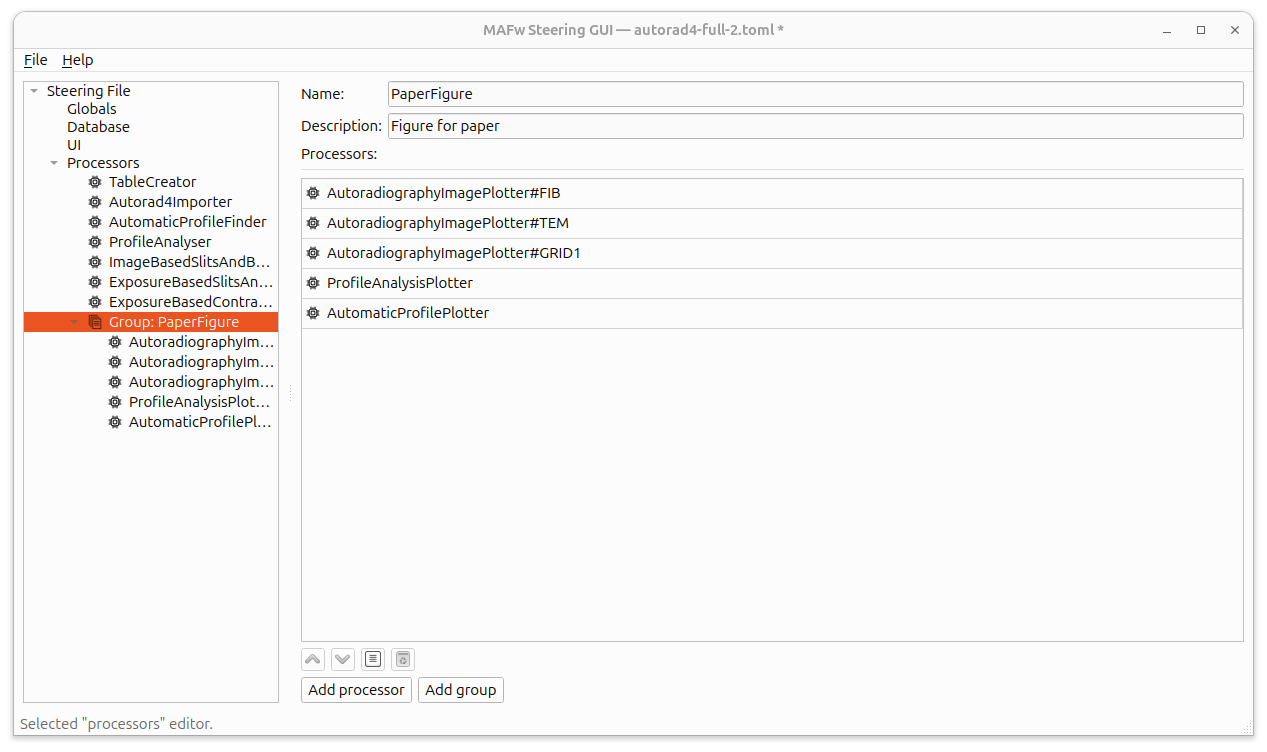

Groups allow you to bundle processors together. This is useful for organizing complex workflows or for running specific parts of your analysis independently. You can pick which processors belong to each group and the GUI will make sure you don’t accidentally create any “infinite loops” of groups calling each other.

The backbone of the GUI: the Steering Builder

Note

This is a very technical chapter that you can skip if you are not interested in developing tools that will programmatically generate steering files.

The Steering GUI is one nice tool that provides an easy and intuitive interface to our in-memory editable steering model, the so called SteeringBuilder.

The mafw.steering package exposes a TOML-centric builder that is completely decoupled from processor instantiation. It reads and writes steering files while keeping metadata editable via a set of dataclasses, a validation layer, and a tomlkit serializer so that any front-end tools can collaborate without touching the execution engine.

For the moment, the builder is mainly used by the Steering GUI, but in the era of Agentic AI, we might provide soon a MCP server exposing the builder API layer so that you would be able to use your favorite AI Agent to build the steering file from a natural language description of what you would like to achieve.

Overview

The MAFw world is divided in two hemispheres: we have the so-called execution framework, where the Runner is reading a steering file in TOML format, parsing a configuration dictionary out of it, build up and configure the pipeline accordingly and finally run it!

The other hemisphere is where the steering file is generated, and here the main role is played by the Builder. This is a in-memory editable model of the steering file and the user can build and edit each and every element of the steering file interacting with the API. When finished, the builder content can be serialized generating a validated steering file that can be provided to the Runner.

In other words, the TOML steering file is the only point of contact of the two hemispheres. hand, or by an MCP agent.

Builder API

SteeringBuilder tracks globals, per-processor sections, groups, database settings, and interface configuration without ever touching a processor class.
Processor helpers can add/remove references, manage replicas, tune parameters, and edit filters (fields, logic strings, and conditionals).
Group helpers keep processors_to_run lists readable and detect cyclic definitions early.
The builder exposes to_document/write to hand TOML documents to other code or to disk.

Serialization & Validation

serializer.serialize emits TOML via tomlkit, preserving insertion order and honoring the required section order: global scalars, DBConfiguration, processor sections, replicas, group sections, and finally UserInterface.
Filters appear as [Processor.__filter__.Model] sections. Replica tables optionally emit __inheritance__ = false when requested.
validation.validate enforces structural rules such as non-empty processors_to_run, valid references, and absence of group cycles. No processor metadata is instantiated or expanded.

When you are ready to save the in-memory steering file, call SteeringBuilder.write(path). You may pass validation_level to request the supported steering checks before it is written. This creates a TOML file that the Runner can read; there is no separate path-compilation command. The builder preserves configured parameter values. The Runner applies the filesystem path rules when it later runs the file. For the command-line way to create, check, and run a steering file, see Prepare a generic steering file and Filesystem paths in steering files.
